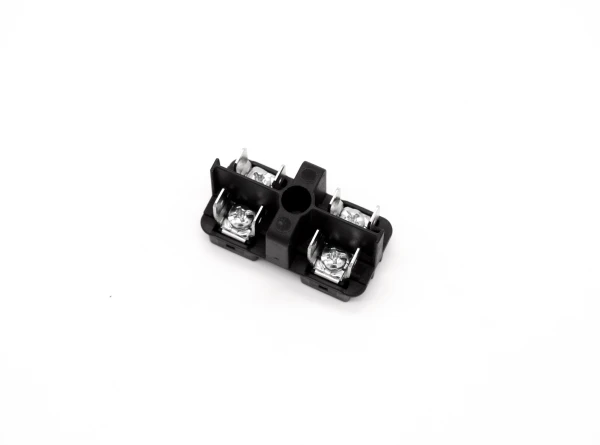

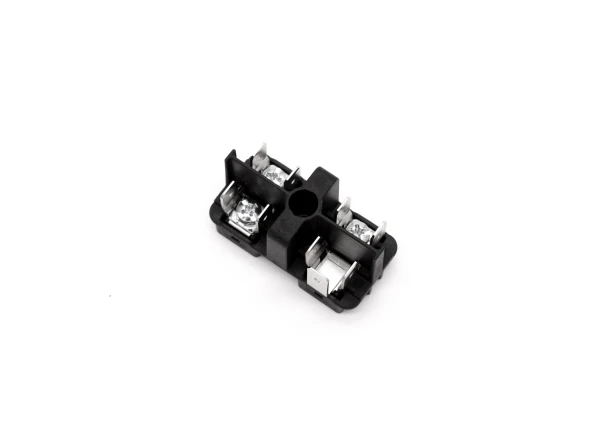

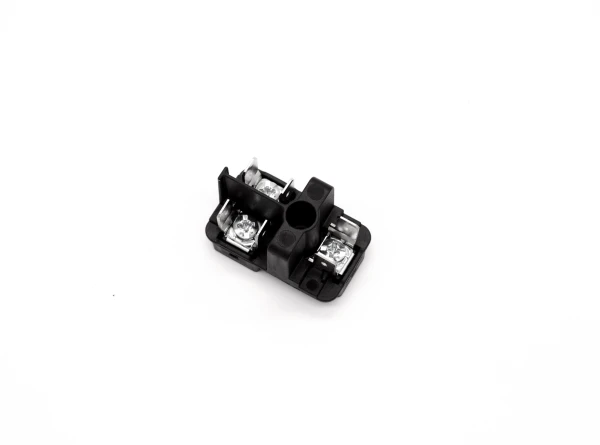

NEW - Terminal block black
| Raw material | PA66 GF25% V0 UL94 - 0,75mm |
|---|---|
| Color | Black |
| Screws | zinc-plated iron |
| Clamp | zinc-plated iron |
| Temperature range | up to 100°C |
| Electrical connection | faston 6,3 x 0,8 mm / electric cables from 18AWG to 12AWG |
| Voltage | up to 600V |
| Current intensity | up to 16A |
| UL listed | on demand |
Description
Terminal block for electrical connections.
Fast wiring with fast-on. Body in self-extinguishing plastic material and contacts in zinc-plated iron.

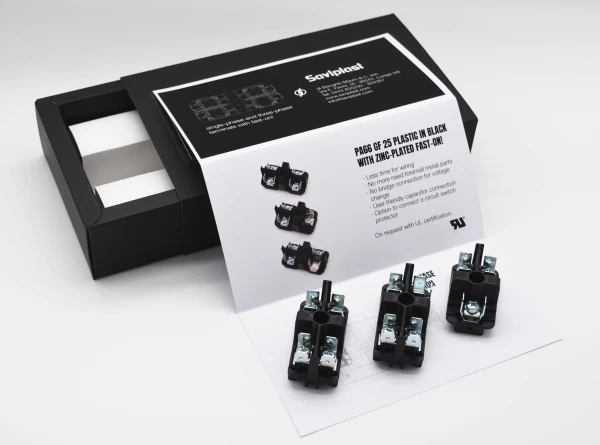

Available in three versions:
- 3 cells (single phase)
- 4 cells (single phase with thermal protector)
- 4 cells with 1 tab and 3 fastons (three-phase for star-triangle connections).
